WiFiGHTER MOUNT - coming soon

Made in Hamburg/Germany

The WiFiGHTER MOUNT is our new mobile mounting solution for professional AP-on-a-Stick (APoS) surveys, temporary Wi-Fi deployments, and use cases at events, trade shows, and other mobile environments. The CM-SURV-1 was developed based on real-world field experience and offers the ideal combination of stability, flexibility, and rapid deployment.

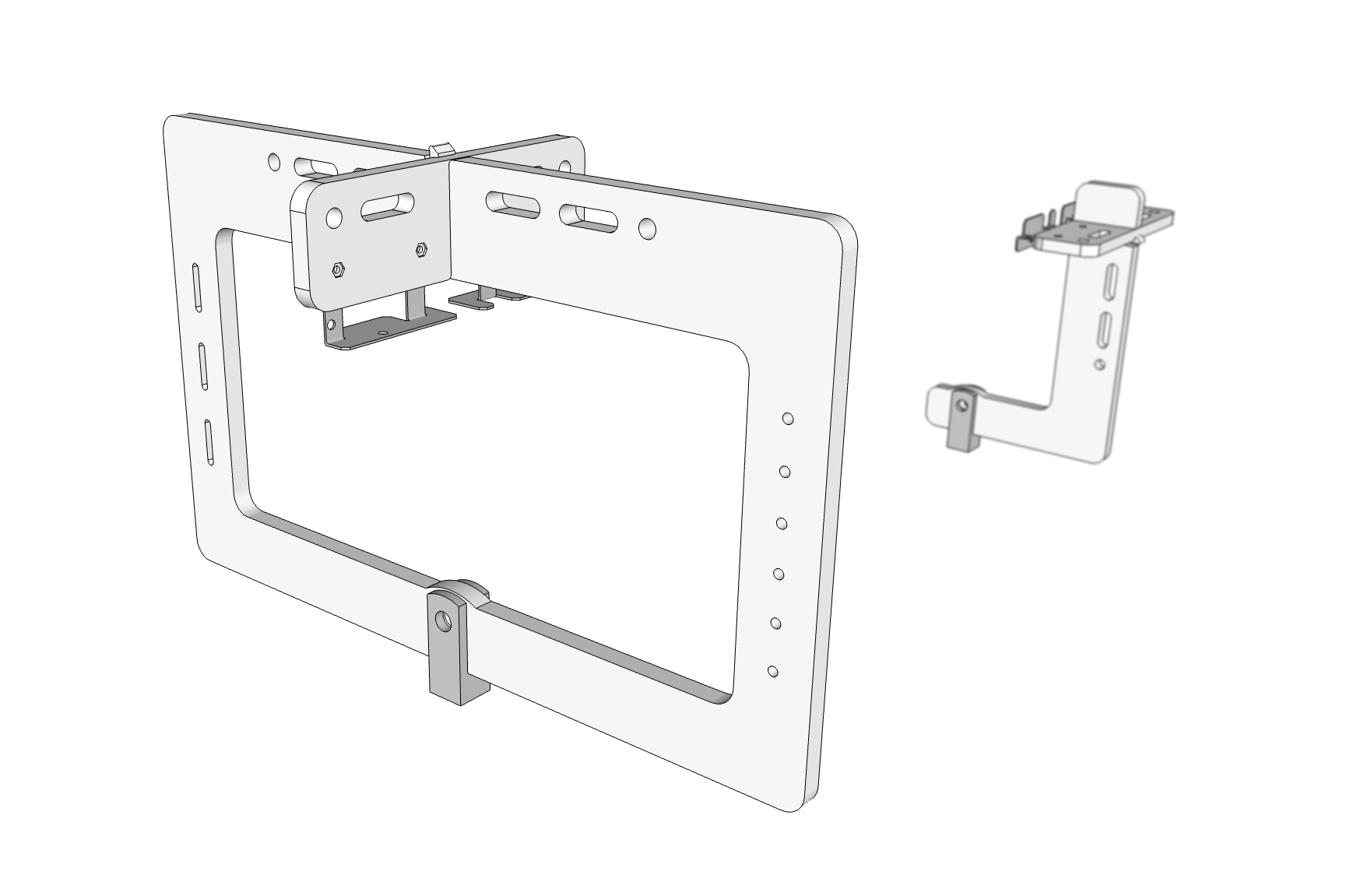

The two-part design consisting of frame and bracket is made from robust, weather-resistant ASA and can be easily disassembled for transport. The integrated stainless-steel rails allow the direct and secure mounting of Aruba access points of the 500, 600, and 700 series without additional mounts. In addition, Cisco T-Rail mounts can be fixed securely. Access points from other manufacturers can also be used, provided suitable Odenwald/T-Rail adapters are available.

For maximum flexibility, a universal adapter solution is already in development. Several openings in the frame are intentionally prepared for this purpose and also provide various mounting points for optional accessories such as antennas or sensors.

The tripod connector of the CM-SURV-1 is designed for the widely used 1/4" camera thread. This allows the WiFiGHTER MOUNT to be mounted quickly and securely on almost any standard photo tripod, survey tripod, or mobile mast – ideal for flexible deployment locations and changing survey situations.

Thanks to its modular design, the CM-SURV-1 is easy to maintain and can be expanded as needed. The stainless-steel rails and the tripod thread insert are screwed in place and can be replaced at any time.

Designed & Made in Hamburg – developed by Wi-Fi professionals for Wi-Fi professionals.

Highlights

• Mobile mounting solution for AP-on-a-Stick surveys and temporary Wi-Fi deployments
• Two-piece, modular ASA design that can be disassembled for transport
• Direct mounting of Aruba APs (500/600/700 Series)
• Compatible with T-Rail mounts and therefore suitable for many additional AP models
• Stainless-steel rails and stainless-steel tripod connector – durable and robust
• Fits 1/4" camera threads – universally usable with photo and survey tripods
• Flat and compact when disassembled for easy transport and storage
• Future-proof thanks to the prepared universal mounting concept

The CM-SURV-1 is currently in its final development phase. Detailed technical specifications, final dimensions, and expansion sets will be added soon.
