Air suspended tripod with 16 mm head with 1/4" and 3/8" thread. The safe, fixed design is both lightweight and portable, making it ideal for site surverys. The telescopic folding mechansim minimizes the dimensions of the tripod when folded and allows quick folding and unfolding.
The height adjustment is infinitely adjustable thanks to the profile locks and the bolt. The non-slip feet stabilize the tripod with precision. The tripod is additionally air suspended. The lowering of the Access Point mounted on the tripod is therefore gentle and slow and the risk of damage is much lower than with spring loaded tripods.
Robust and durable materials - Metal tripod (screw holder, T-piece and hook are made of plastic)
Height adjustable from approx. 120 to 320 cm height
16 mm double sided studio head (1/4 and 3/8 inch thread)
Air suspended
telescopic unfolding mechansim
Clamps that block the sections - wing screws
non slip feet
max. load capacity 3 - 10 Kilo (10 Kilo for min. height, 3 Kilo for max. height)
This aluminium high tripod is manufactured by a family owned factory in Germany.

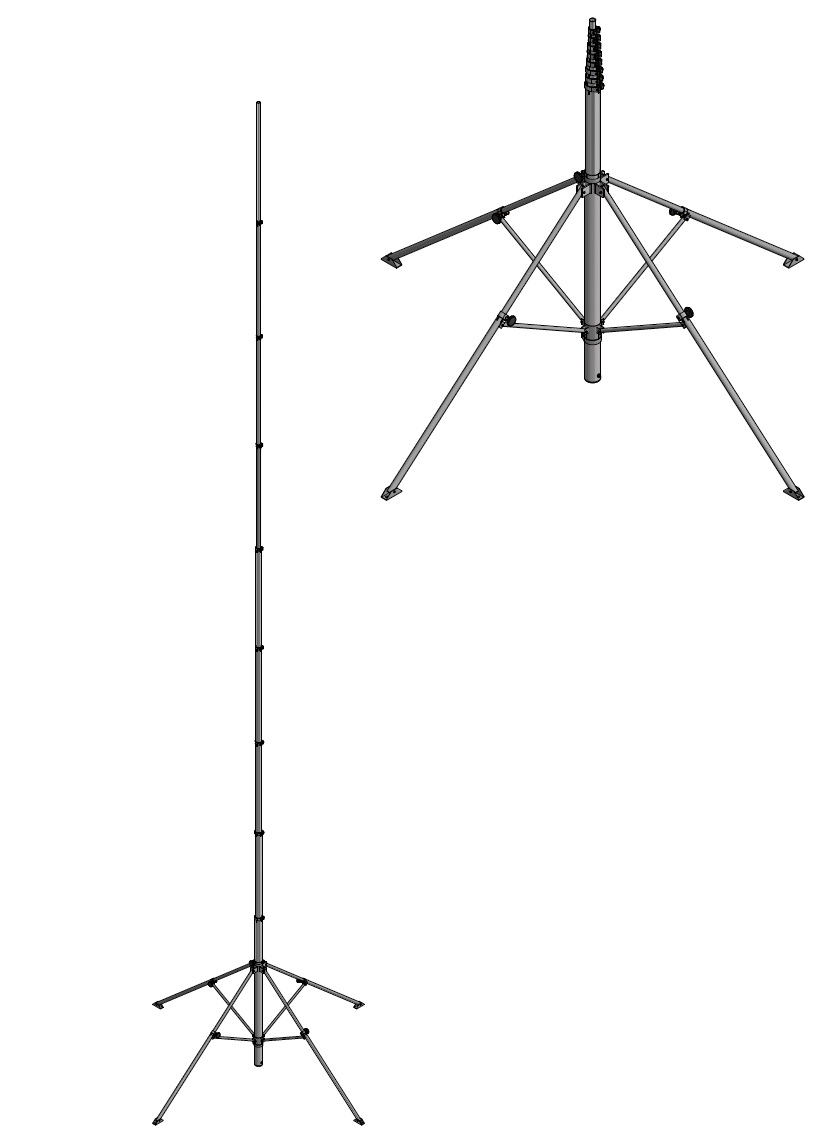

With an extended length of 10.50 meter and a load capacity of up to 8 kilos, the aluminium high tripod is perfect for WiFi Site Surveys in logistic warehouses, various types of factories and distribution centres.
Due ot the inserted length of 1.90 meter and a transport weight of approx. 28 kilos, this aluminium high tripod is very easy to transport.
The aluminium high stand consists of an aluminium round mast to which four feet are attached. The individual feet are telescopic so that small unevennesses in the terrain can be compensated. The round masts consist of several aluminium tubes that are inserted into each other and polished on one side and pushed out by hand. The sturdy clamps securely lock the extended tubes in place.
The maximum permissble extension lenght is limited by a marking ring. There is no fixed stop when pulling out. There are two markings for safety. When the first mark is reached, the telescopic tube should then be slowly pushed out to the second mark and locked in place by the clamp when this is reached.
The aluminium high tripod and the round mast are made of anodised aluminium round tubes (AlMgSi05 F22) with a 2 mm wall thickness. The own weight is approx. 28 kilos and is therefore very low.
** Note: When using the aluminium high tripod with a head load, bracing must be carried out depending on the existing wind conditions.**
Aluminium high tripod, black anodised 10.50 metres extended height
Inserted length: 1.90 metres
Extended length: 10.50 metres
Colour: black anodised
Tube diameter (mm): 70/65/60/55/50/45/40
Material: Aluminium
Load capacity: up to 8 Kilo
Transport weight: approx. 28 Kilo
Head: 1/4" photo thread (removable)
Country of origin: Germany
Made in Hamburg/Germany
The first Cisco to Aruba adapter for the WiFi community, called Arubadaptor!
This adapter is the first and simplest solution to use Cisco brackets for Aruba Access Points.
The Arubadaptor is compatible with all our Cisco Access Points brackets and most other brackets for current Cisco Access Points. You don't have to replace your brackets just because you're changing the manufacturer of the Access Points.
This saves time, money, and nerves!
The adapter is attached to the back of the Aruba Access Points. Remove the original bracket of the Aruba Access Points and attach the Arubadaptor to the prepared screw holes of the Aruba Access Points. Nothing else is needed.
The adapter is designed in a way that each port is freely accessible. The console and Ethernet ports have enough space to be used without cable placement issues. The sticker with the serial number and MAC data is easily accessible.
Developed, designed, and manufactured in Germany.
Made of stainless steel! Therefore, the Arubadaptor is extremely resistant to mechanical stress and other influences.
Transition from Cisco:
AP1040
AP1140
AP1260
AP1600
AP2600
AP2700
AP2800
AP3500
AP3600
AP3700
AP3800
Transition to Aruba:
500er Serie
600er Serie
Package Contents:
Arubadaptor
4* screws M4
Please note that the antennas and Access Points are not included in this item.
Download Datasheet

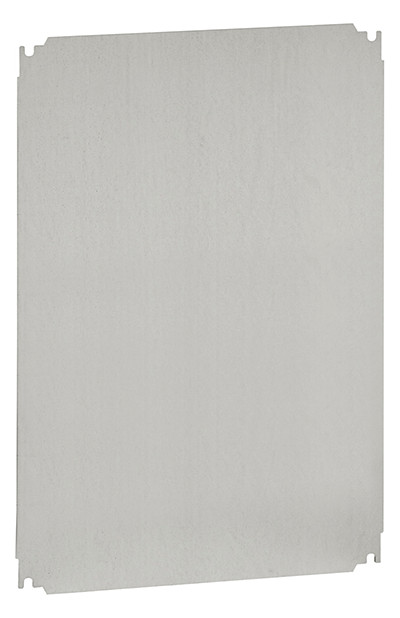

Legrand Montageplatte, Vollplatte, Abmessung 400 x 300 (Höhe x Breite in mm); Material: StahlblechMontageplatteAbmessungen: 400 x 300 mm (Höhe x Breite in mm)Werkstoff: StahlOberfläche: verzinktGewicht: ca. 1,1 Kg

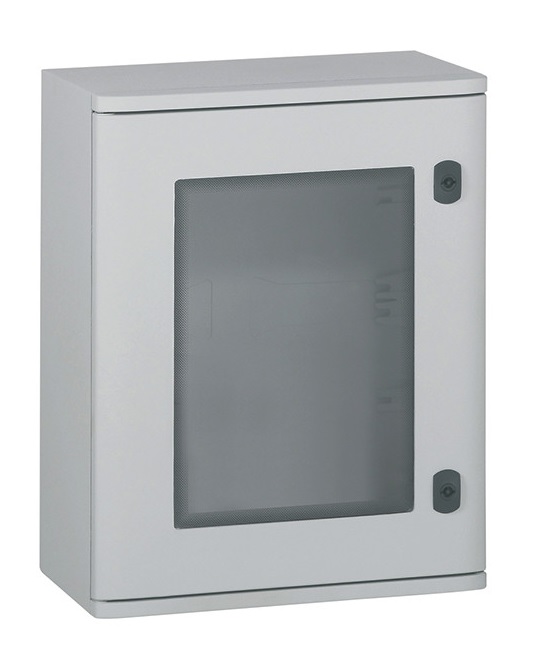

Legrand Wandschrank Marina mit Sichtfenster aus Sicherheitsglas, Schutzart IP66 - IK10, Klasse II, nach IEC/EN 60529, IEC/EN 62262, Außenabmessungen 400 x 300 x 206 (Höhe x Breite x Tiefe in mm). Material: glasfaserverstärktes Polyester, Lichtgrau RAL 7035, selbstverlöschend 960 °C, besonders für korrosive Umgebungen geeignet, Tür beidseitig anschlagbar, inkl. Doppelbarverschluss mit Doppelbartschlüssel. Montageart: AufputzArt der Abdeckung: TürAusführung Deckel: geschlossenArt der Tür: EinzelnSichtfenster: JaMit Schloss: JaMasse: 400 x 300 x 206 mm (Höhe x Breite x Tiefe)Einbautiefe: 205 mmInnentiefe: 178 mmMaterialstärke Gehäuse: 2,5 mmMaterialstärke Tür: 2,8 mmFarbe: Grau RAL 7035Anzahl der Öffnungen für Flanschplatten: 0Anbaumöglichkeit: NeinWerkstoff des Gehäuses: KunststoffOberfläche: unbehandeltMit Montageplatte: NeinGeeignet für Außengebrauch: JaGeeignet für Blitzschutz: JaSchutzart (IP): IP66 Schutzklasse: IISchlagfestigkeit: IK10Funktionsinhalt: ohne
The Zackenkönig is the perfect tool to drill easy and cleanly a hole for a cable entry by hand. Small, light and electricity needed. A MUST HAVE for every WLAN Pro.
